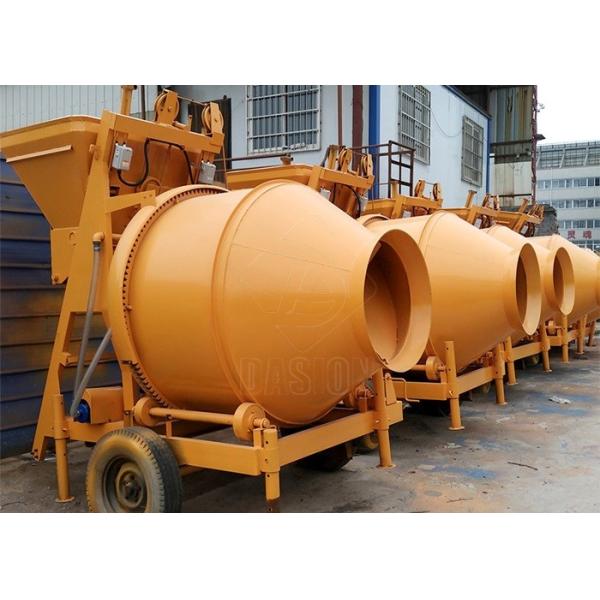

Hopper Lift Mobile Small Portable 350L Homemade Hydraulic Cement Mixer For Building
Introduction
JZC series Concrete mixers adopt Rubber Friction-tape which transfer the powder from electric motors to mixing drum belt for rotating and are driven by electric motors, which clockwise rotating for concrete mixing, and anti-clockwise rotating for concrete discharging,and can mix plastic and semi-hard concrete.
Features
1. Floor-type bipyramid reversal discharging mixer machine, used to mix the plastic and half-dry hard concrete.
2. It has reasonable structure, high production efficiency, good mixing quality and beautiful sculpt and low noise.
3. Entrusted with rubber friction wheel drive, with low noise, smooth operation, easy to move.
4. The concrete mixer is to mix when turning clockwise, and discharge when turning anticlockwise and can mix plastic and semi-stiff-consistency concrete.
Parameters
| Model | JZC300 | JZC350 | JZC450 | JZC500 | JZM500 |
| Discharging volume | 300L(0.3m3) | 350L(0.35m3) | 450L(0.45m3) | 500L(0.5m3) | 500L(0.5m3) |
| Charging volume | 480L | 560L | 720L | 800L | 800L |
| Capacity | 6-8m3/h | 10~14m3/h | 16-18m3/h | 18-20m3/h | 18-20m3/h |
| Drum rotating-speed | 17r/min | 14r/min | 13r/min | 13r/min | 13r/min |
| Max. aggregate size | 60mm | 60mm | 60-80mm | 60-80mm | 60-80mm |
| Water feeding precision | ≤2% | 2% | ≤2% | ≤2% | ≤2% |
| Mixing motor | 4kw | 5.5kw | 11kw | 11kw | dual-5.5kw |
| Hoisting Motor | 3kw | 4.5kw | 5.5kw | 5.5kw | 5.5kw |
| Water pump motor | 0.55kw | 0.55kw | 0.75kw | 0.75kw | 0.75kw |
| Tyre spec. | 6.50-16 | 6.50-16 | 7.50-16 | 7.50-16 | 7.50-16 |
| Max. dragging speed | 20 km/h | 20 km/h | 20 km/h | 0 km/h | 20 km/h |
| Outline Dimension | 2260x1990x 2750mm | 2766x2140x 3000mm | 5226x2200x 3100mm | 3116x2050x 4060mm | 5800x2200x 3100mm |
| Weight | 1200kg | 1650kg | 1900kg | 1950kg | 2800kg |
| Color | Yellow, red, green, blue, or customers' request |
Application
JZC series Concrete mixers are adaptable for architectural building site, civil engineer, and bridge project, small and medium concrete plant. And they are also applicable to the small construction project, used for the variety of concrete production, mortar and grout, roads and hydro power projects, especially for urban residential areas and construction.
Our Service
1.According to your inquiry, We will reply to you in 24 hours.
2.Best After-sales: We will send the technical personnel to the site for installation, commissioning and training work.
3.Warranty period 12 Months, in addition to the force majeure and man-made factors, the damage caused by design, process and manufacturing equipment, the seller is responsible for sending people to offer free repair.
4.We will send the spare parts as soon as possible when necessary, equipment repair parts provided by the seller are original, authentic, quality goods.
